How to Use the Baofeng UV-5R as a Walkie-Talkie

The Baofeng UV-5R is a versatile, affordable dual-band handheld transceiver that can be used as a walkie-talkie for both personal and professional communication needs.

Whether you are a beginner or an experienced radio operator, understanding how to use this device effectively can greatly enhance your communication capabilities. This guide will walk you through the essential steps to use the Baofeng UV-5R as a walkie-talkie.

When using the Baofeng UV-5R as a walkie-talkie, it’s essential to comply with local regulations regarding frequency use and transmission power. In many regions, using certain frequencies requires a license, and unauthorized use can lead to fines or other legal consequences.

Getting Started

Unboxing and Initial Setup

  • Unbox the Device: Upon opening the box, you should find the Baofeng UV-5R radio, an antenna, a battery, a belt clip, an earpiece, a charging base, and a user manual.
  • Attach the Antenna: Screw the antenna onto the radio’s SMA female connector.
  • Insert the Battery: Align the battery with the back of the radio and slide it into place until it clicks.
  • Charge the Battery: Place the radio in the charging base and connect it to a power source. Let it charge fully before first use.

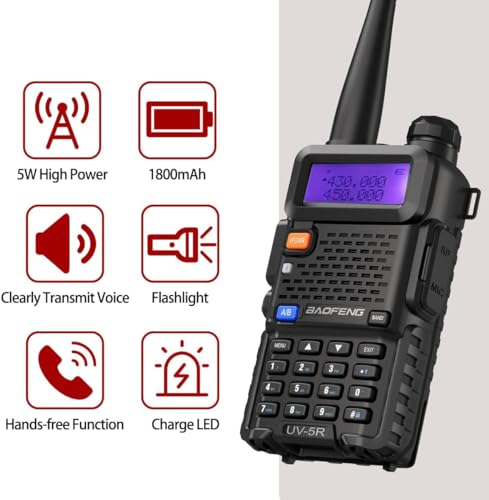

Baofeng UV-5R Two Way Radio Dual Band 144-148/420-450Mhz Walkie Talkie 1800mAh Li-ion Battery(Black)

Powering On and Basic Operation

  • Turn On the Radio: Rotate the volume knob clockwise until you hear a click. The LCD screen will light up, indicating the radio is on.
  • Adjust Volume: Continue rotating the volume knob to set your desired volume level.

🏷️ Baofeng Radio Accessories Deals ⭐⭐⭐⭐⭐

Programming the Radio

The Baofeng UV-5R can operate on both VHF and UHF frequencies. For walkie-talkie use, you’ll typically use pre-programmed channels or manually set frequencies within the legal limits for your country.

👉 Two-Way Radio Frequency Tables

Setting Frequencies Manually

  • Enter Frequency Mode: Press the [VFO/MR] button to switch to Frequency (VFO) mode.
  • Input Frequency: Use the keypad to enter your desired frequency. Ensure it is within the legal bands for unlicensed use (e.g., FRS or PMR frequencies).
  • Save Frequency to a Channel:
    • Press [MENU].
    • Use the arrow keys or type the number to navigate to menu item 27 (MEM-CH).
    • Press [MENU] again.
    • Use the arrow keys to select an empty channel slot (e.g., 001).
    • Press [MENU] to confirm and save.
    • Exit the menu by pressing [EXIT].

BAOFENG UV-5R Ham Radio 8W Long Range UV5R Dual Band Handheld 3800mAh Extended Battery Rechargeable Walkie Talkies for Adults with Earpiece,USB Charger and Programming Cable Full Kit,2Pack

Using Pre-Programmed Channels

If your Baofeng UV-5R has pre-programmed channels (common for devices programmed by distributors), you can switch between them easily.

  • Enter Channel Mode: Press the [VFO/MR] button to switch to Memory (MR) mode.
  • Select a Channel: Use the arrow keys or keypad to navigate through the saved channels.

Communicating and Making a Call

  • Select the Same Frequency/Channel: Ensure all radios in your group are set to the same frequency or channel.
  • Transmit: Hold down the PTT button on the side of the radio while speaking into the microphone.
  • Receive: Release the [PTT] button to listen to the reply.

🏷️ Baofeng Radio Accessories Deals ⭐⭐⭐⭐⭐

Using CTCSS/DCS Codes

To reduce interference and ensure private communication, you can set CTCSS (Continuous Tone-Coded Squelch System) or DCS (Digital-Coded Squelch) codes.

  • Set CTCSS/DCS Codes:
  • Press [MENU].
  • Navigate to menu items 11 (R-CTCS) for receive code or 13 (T-CTCS) for transmit code.
  • Select the desired code using the arrow keys and confirm with [MENU].
  • Repeat for DCS using menu items 10 (R-DCS) and 12 (T-DCS).

Additional Features

Scanning for Active Channels

The Baofeng UV-5R can scan for active frequencies or channels, which is useful for finding conversations in progress.

  • Start Scanning: Press and hold the [SCAN] button. The radio will scan through frequencies or channels until it detects a signal.

Baofeng UV-5R Ham Radio Long Range UV5R Dual Band Handheld Two Way Radio Walkie Talkies with 1800mAh Li-ion Battery and Earpiece for Hunting Survival Gear,2 Pack

Using the LED Flashlight

  • Activate Flashlight: Press the button on the side labeled [MONI] briefly to turn on the LED flashlight. Press again to turn it off.

Monitor Mode

  • Enable Monitor Mode: Press and hold the [MONI] button to open the squelch and listen to any activity on the current frequency, regardless of CTCSS/DCS settings.

Guides

Here are some troubleshooting guides if you run into issues with your Baofeng

Safety and Legal Considerations

When using the Baofeng UV-5R as a walkie-talkie, it’s essential to comply with local regulations regarding frequency use and transmission power. In many regions, using certain frequencies requires a license, and unauthorized use can lead to fines or other legal consequences.

Conclusion

The Baofeng UV-5R is a powerful and flexible tool for communication, capable of much more than a typical walkie-talkie. By following these steps, you can effectively use your Baofeng UV-5R for clear and reliable communication in various situations. Whether for personal, recreational, or professional use, mastering this device will enhance your ability to stay connected.
