Have you ever wondered how engineers and technicians “see” electricity? Electricity is invisible, but its behavior can be measured and visualized using a tool called an oscilloscope.
Oscilloscopes are essential in electronics, engineering, and science, helping users observe how electrical signals change over time.
🏷️ Rigol Oscilloscopes ⭐⭐⭐⭐⭐
But how does an oscilloscope work? This article explains the basics of how an oscilloscope functions, what its main components are, and how it transforms electrical signals into the squiggly lines you see on its screen—all in easy-to-understand terms!
Table of Contents
What is an Oscilloscope?
An oscilloscope is an electronic device that displays electrical signals as waveforms on a screen. These waveforms show how voltage changes over time, allowing users to analyze the signal’s shape, frequency, and amplitude.
🤔 Why is this useful?
- To diagnose problems in electronics and circuits
- To measure signal properties (like voltage and frequency)
- To test the performance of devices like amplifiers and sensors
How Does an Oscilloscope Work?
🔌 Step 1: Signal Input

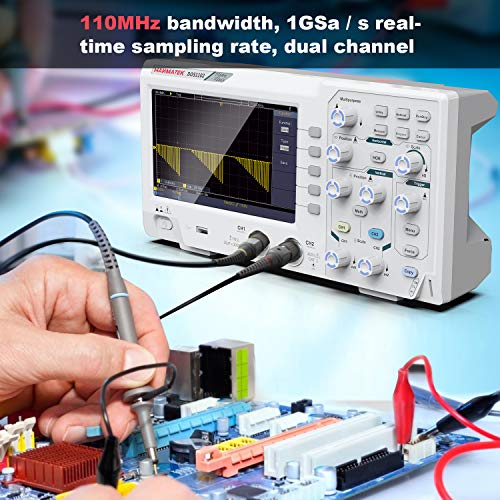

You start by connecting the oscilloscope probe to the circuit or device you want to test.
- The probe picks up the electrical signal (a change in voltage over time).
- This signal is then sent into the oscilloscope for processing.
Real-world example: Connecting the probe to a speaker wire to “see” sound waves.
⚙️ Step 2: Signal Conditioning
Before the oscilloscope can display the signal, it needs to adjust and process it:
- Attenuators reduce high-voltage signals to safe levels.
- Amplifiers boost low-voltage signals so they’re easier to see.
- Filters can remove unwanted noise from the signal.
Why this matters: Without conditioning, the signal might be too weak or too strong to display accurately.
📊 Step 3: Signal Conversion (Digital Oscilloscopes)
Most modern oscilloscopes are digital, meaning they convert the incoming signal into data the device can read.
- The signal passes through an Analog-to-Digital Converter (ADC).
- The ADC samples the signal at regular intervals, creating digital data points.
Tip: Higher sampling rates mean a more accurate display of fast-changing signals.
🖥️ Step 4: Displaying the Waveform
Once converted, the oscilloscope plots the signal on a screen:
- The horizontal axis (X-axis) represents time.
- The vertical axis (Y-axis) represents voltage.
Result: You see a waveform that shows how the voltage changes over time!
🕹️ Step 5: User Adjustments
You can adjust settings to better view and analyze the signal:
- Time base: Controls how much time is shown on the X-axis (zoom in/out on the signal).
- Voltage scale: Changes how much voltage each vertical division represents.
- Trigger settings: Helps stabilize the waveform so it doesn’t move around on the screen.
Why it matters: These controls let you focus on the details of the signal, like seeing a single pulse or a repeating wave.
Main Parts of an Oscilloscope
🔌 Input Channels: Where you connect the probe to measure signals.
📏 Vertical System: Adjusts the voltage scale and amplifies signals.
🕒 Horizontal System: Controls the time base (how fast the waveform moves).
⚡ Trigger System: Stabilizes the waveform for a clear, steady display.
🖥️ Display Screen: Shows the waveform and measurement information.
Understanding the Waveform Display
When you look at the oscilloscope screen, you’ll see:
📉 Waveform Shape: Shows if the signal is clean or distorted.
🔝 Amplitude (Height): Represents the voltage level.
🔄 Frequency (Repetition Rate): How often the signal repeats.
⏳ Period (Wave Width): The time for one full cycle of the wave.
✅ Example:
- A flat line means no signal.
- A smooth sine wave could represent an AC power supply.
- A square wave might indicate a digital signal turning on and off.
Analog vs. Digital Oscilloscopes: What’s the Difference?
| Feature | Analog Oscilloscope | Digital Oscilloscope |
|---|---|---|
| Signal Type | Displays real-time analog signals | Converts signals to digital form |
| Memory | No storage | Can save waveforms |
| Features | Basic measurements | Advanced analysis and features |
| Popularity | Less common today | Widely used in modern applications |
Tip: Digital oscilloscopes are now more common due to their flexibility and advanced features.
Real-Life Applications of Oscilloscopes
🎸 Audio Testing: Check sound wave quality in speakers and microphones.
🚗 Automotive Diagnostics: Test sensors and ignition systems in cars.
📡 Communication Systems: Analyze signals in radios and Wi-Fi networks.
🔬 Scientific Research: Measure electrical activity in experiments.
🏠 Home Repairs: Diagnose issues with appliances and electronic devices.
Why is an Oscilloscope Important?
🔎 See Hidden Problems: Detect electrical issues you can’t see with other tools.
⚡ Quick Diagnosis: Identify faults in circuits and devices faster.
🎯 Accurate Measurements: Get precise data on voltage, frequency, and timing.
🧰 Versatile Tool: Useful in electronics, automotive work, audio engineering, and more.
Final Thoughts
An oscilloscope is like a window into the world of electricity. It works by taking electrical signals, processing them, and displaying them as waveforms that you can analyze.
Whether you’re an engineer, technician, student, or hobbyist, understanding how an oscilloscope works can help you diagnose problems, test devices, and learn about electronics more effectively.
